Beskrivelse
HIGHLY CONFIGURABLE TOWER SYSTEM

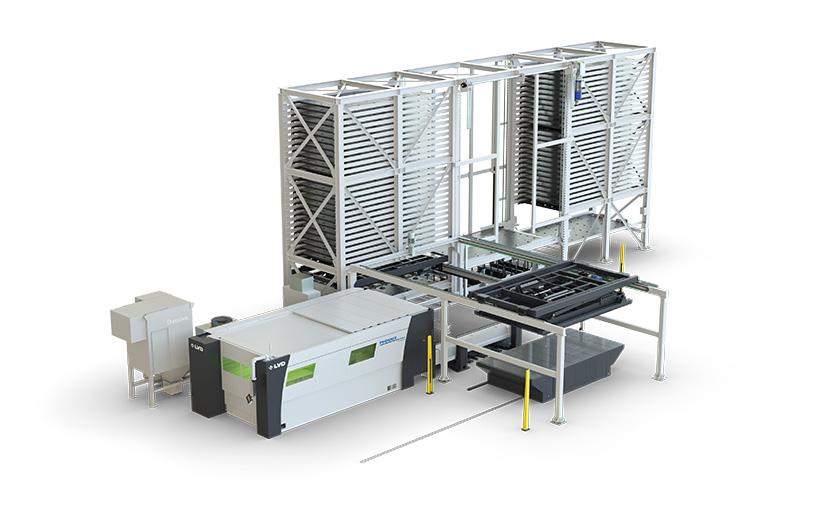

MOVit Tower Automation System (TAS) is a single or double tower storage system for integration with one or two laser cutting machines in 3015, 4020 or 6020 formats. Available in 16 possible configurations, TAS offers a continuously-ready material supply to keep machine output at its peak. An optional direct unload station allows processed work pieces to be offloaded for sorting or secondary processing.
KEY FEATURES
- Efficient storage and retrieval of raw materials
- Continuous material flow for uninterrupted and lights-out production
- Optimized use of floor space
- Highly reliable automated production
PRODUCTIVITY-ENHANCING OPTIONS
- Direct unload station
- Input/Output (I/O) tower station
- 16 possible system configurations
MODELS
- Available for Phoenix and Electra series (TAS 3015, TAS 4020 and TAS 6020)
Specifications
- 3-ton capacity per pallet (5-ton for 6020)
- Up to 63 pallets, depending on system configuration
- Stack height of 90 mm
