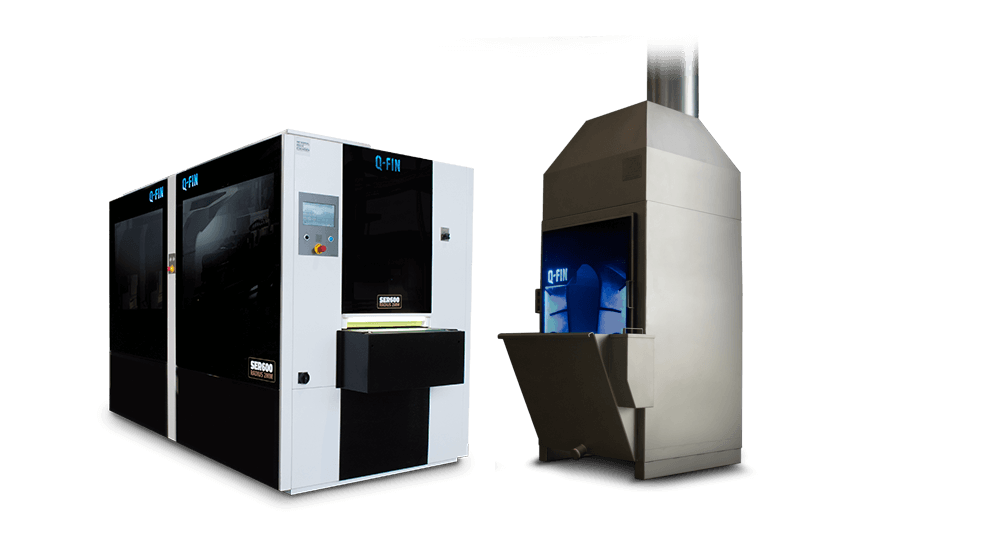

SER600 Set

Operation SER600

The SER600 is equipped with 5 work stations. The first station is the grinding unit. The 630 mm wide grinding belt is equipped with an oscillation system. This system ensures that the grinding belt remains stable during grinding. Because of the unique cantilever construction, a beautiful line grained finish (‘linishing’) with this machine is also no problem. Changing a abrasive belt is done in no time.

The second and third station consists of the so called brush unit, equipped with 4 cross rotating, oscillating disc brushes. These give pressure from the top and allow you to remove the sharp edges of the product by breaking the edges. By placing special brushes on the first brush row, you can also remove the laser oxide skin or deslag steel products.

The fourth and fifth machining station consists of 2 oscillating round brushes. These work mainly on the sides of the product. In combination with the 4 disc brushes, this ensures a maximum radius on the product. If you are looking for the extremes you need something special. The Super Edge Rounder SER600.

Operation WES6000

WES stands for ‘Wet Extraction System’ and according to Q-Fin is the most easy, safe and sustainable way to extract grinding dust. With this wet extractor, fire and explosion risks are excluded. Your operators can work in a clean, dust-free environment. The WES is available as WES3000 and WES6000. These wet dust extractors can be combined with almost all our deburring machines, in many cases even multiple deburring machines can be connected to one WES extraction system.

The WES6000 has a extraction capacity of 6000 m3/h, which is more than sufficient for an efficient dust extraction of the SER600. If required, we can provide installation including pipe work as well as training of your operators on location. Prior to installation, we will draw up an installation lay out together with you, in which we will also draw up all the tubing. We will also provide you with a checklist so you can make sure all the necessary facilities are present before the start of the installation.
