AFFORDABLE HEAVY-DUTY SHEARING

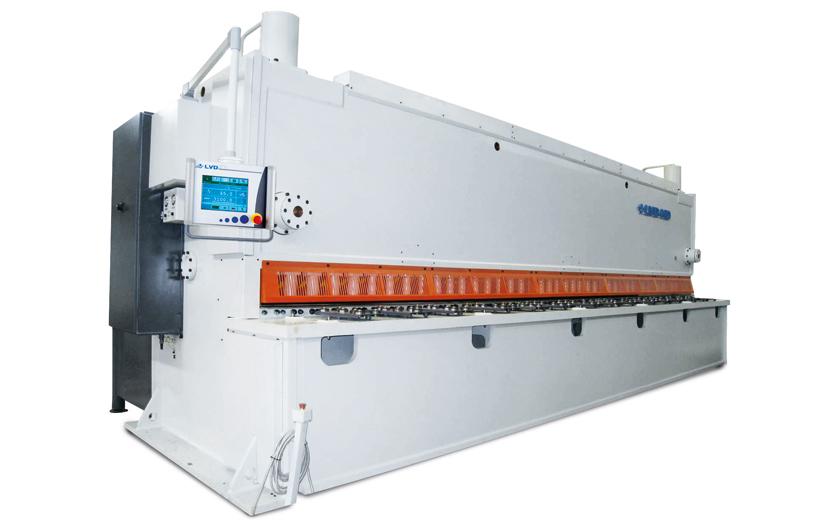

The HGS guillotine shearing machine makes heavy-duty shearing affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to 30 mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured, HGS shears fit your needs and your budget.
KEY FEATURES
- Intuitive touch screen control
- Adjustable rake angle for optimum cutting control
- Rake angle adjustment at 0.5 degrees minimizes distortion when shearing narrow strips, reduces or eliminates corkscrew and bow distortions
- Automatic calculation of blade clearance and cutting angle based on material and thickness
PERFORMANCE-ENHANCING OPTIONS
- Squaring / front arms
MODELS
- From 10 mm to 30 mm cutting capacity
Specifications
- Maximum shearing capacity: mild steel 45 kg/mm from 10 mm to 30 mm, depending on model; stainless steel 60 kg/mm from 6 mm to 20 mm, depending on model
- Cutting length: from 3100 mm to 8000 mm, depending on model
