COMPACT, ROBOTIC BENDING CELL

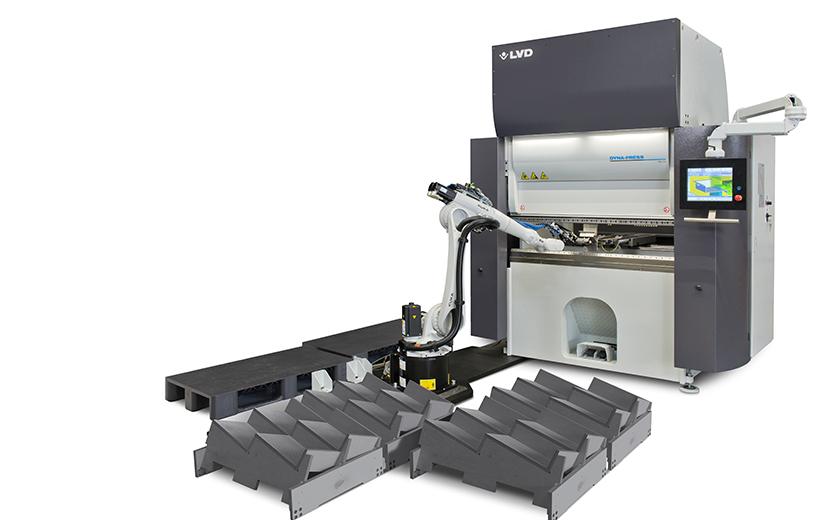

The Dyna-Cell features the high-speed Dyna-Press Pro electric press brake coupled with an industrial robot. The compact, integrated unit automates the bending of small- to medium-sized parts in varying batch sizes at speeds of up to 25 mm per seconds. Dyna-Cell offers maximum bending productivity in a compact footprint of 5 m x 5 m.
KEY FEATURES
- Optimum cost-benefit ratio
- Fast, electric-drive press brake

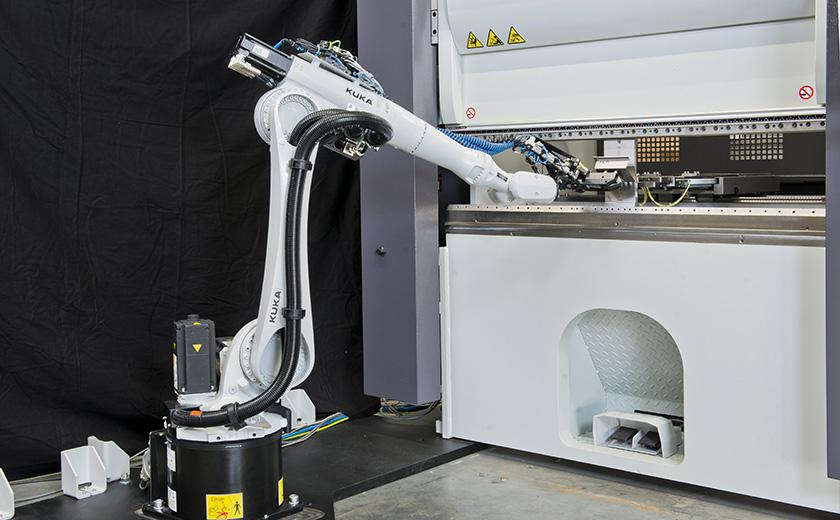

- Lightweight Kuka industrial robot
- Start final production after <10 minutes CAM and <10 minutes setup

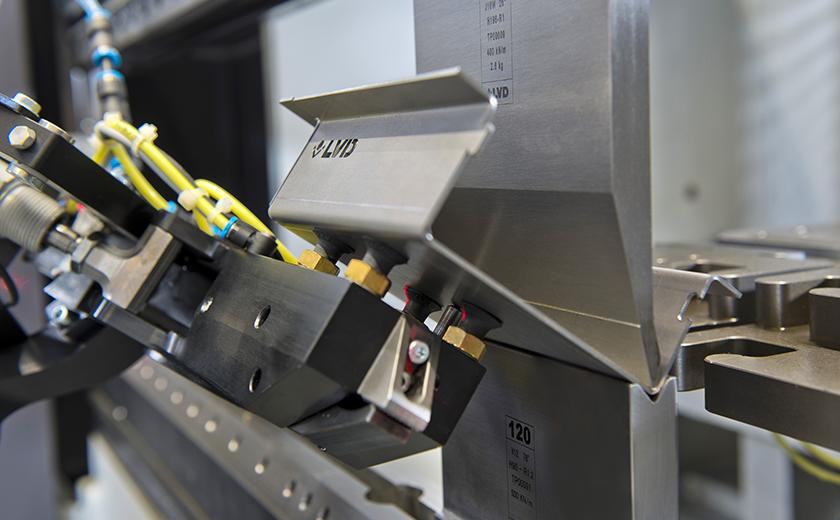

- Unique gripper that fits all part sizes from 30 mm x 100 mm up to 350 mm x 500 mm
- Space for two input pallets, two unloading pallets or boxes (Euro pallet size)

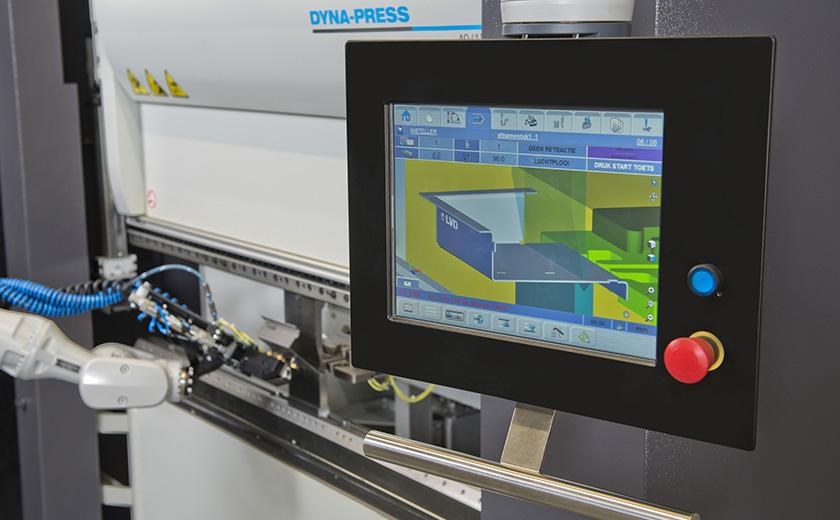

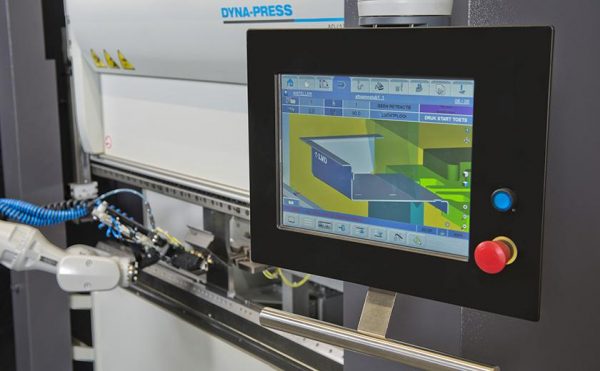

- Intuitive 15” Touch-B touch screen control
- Fully integrated with LVD’s CADMAN® software suite
- Unmanned or manned operation
PERFORMANCE-ENHANCING OPTIONS

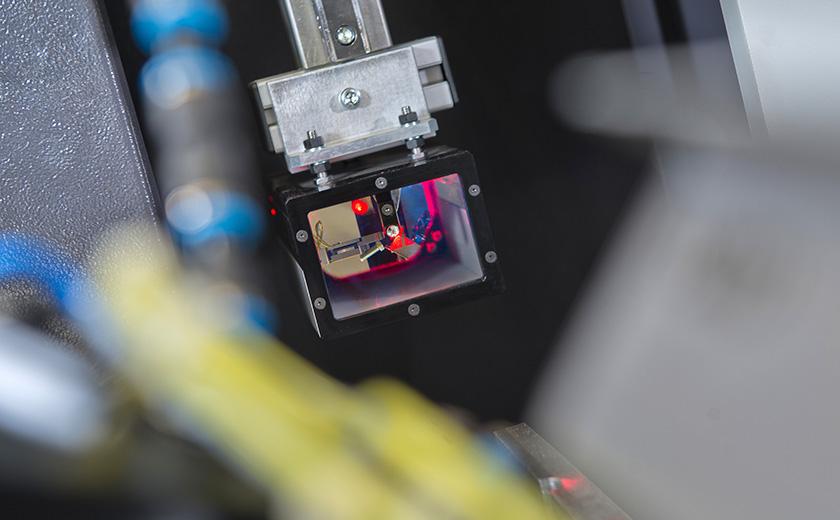

- Easy-Form® Laser system
- CADMAN-B programming software
- W-style or universal tooling
MODELS
- Dyna-Cell 40/15
Specifications
- Bending speeds up to 25 mm per second
- 40 tons of bending force
- Maximum bending length to 1500 mm
