COMPACT MATERIAL STORAGE AND RETRIEVAL TOWER
The Compact Tower (CT-L) provides full capabilities for loading, unloading and storage of raw material and finished parts. This enables automated production from stored raw material to stacked finished parts. The CT-L system creates a productive, flexible manufacturing cell capable of operating “lights out.” An intuitive touch screen graphical user interface ensures operation of the CT-L is fast and efficient.
KEY FEATURES
- Creates flexible manufacturing cell
- Pallet construction designed for compact set up and convenient forklift manipulation
- Automatic sheet thickness control and automatic sheet separator devices ensure efficient material loading
- Touch screen graphical user control is intuitive and simple to use
MODELS

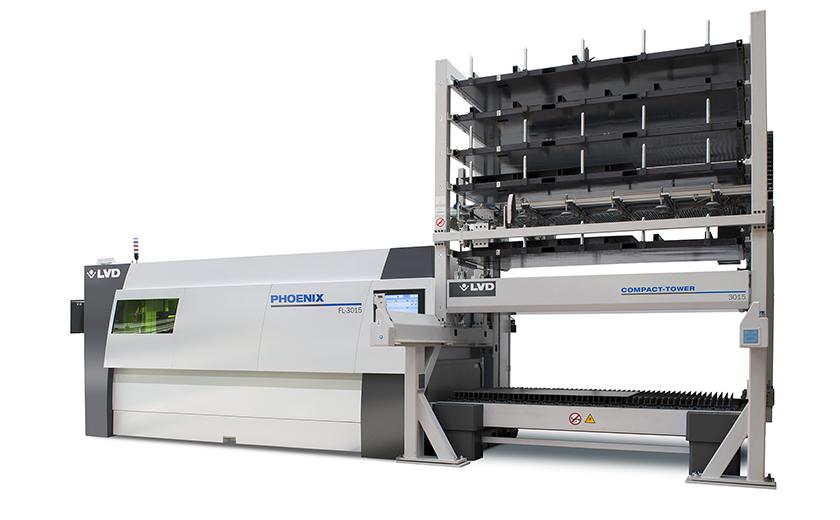

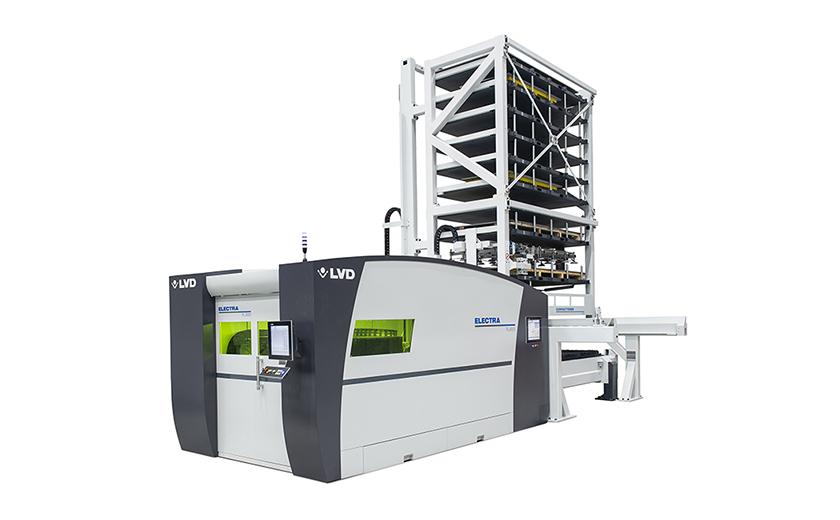

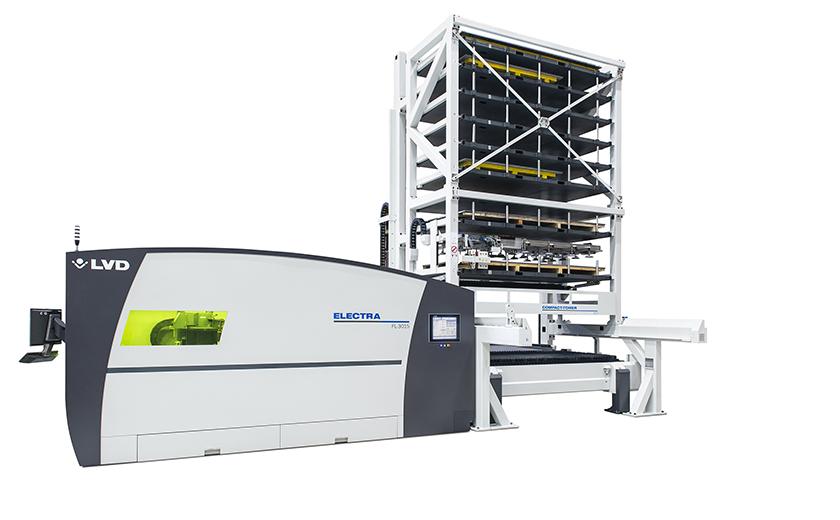

- Available for Phoenix FL-3015 and Electra FL-3015
Specifications
- 4, 6, 8 or 10 pallet configuration
- Maximum sheet size: up to 3050 x 1525 mm
- Material thicknesses up to 25 mm
- Maximum load/unload pallet storage capacity of 3000 kg
