THE BENCHMARK FOR BEND CAM SOFTWARE

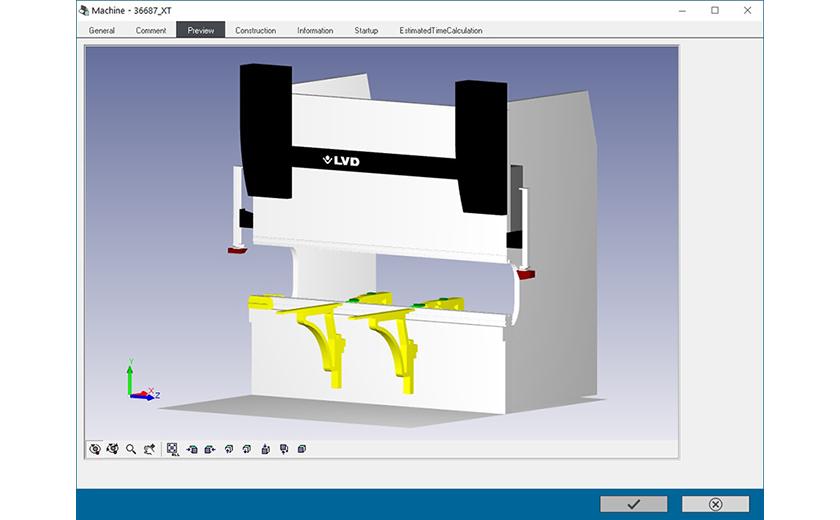

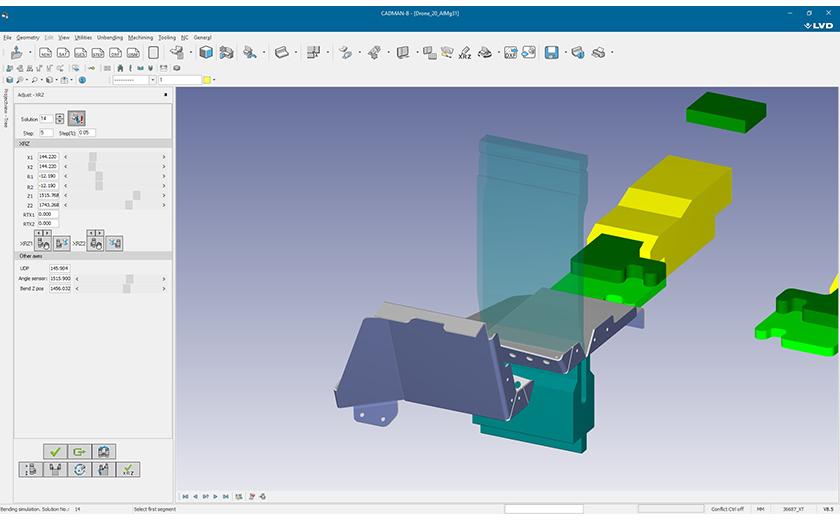

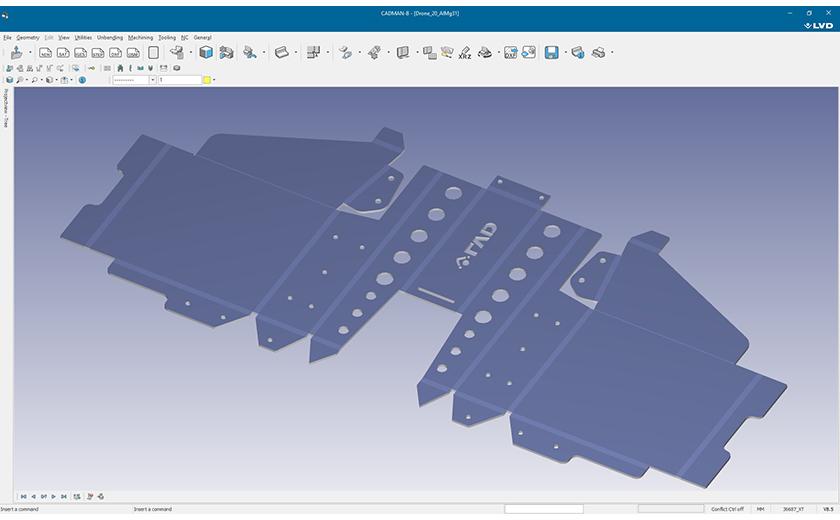

CADMAN-B sets the standard for bending CAM software. After importing a 3D CAD part, CADMAN-B automatically unfolds the part, expertly calculates press brake bend allowances, creates the 2D DXF file and determines the optimal bend sequence, tooling, tool and gauge positions – making it easy to program formed parts. A simulation environment visualizes the complete bend process with start to finish 3D collision detection, all gauge positions and tool set-ups.
KEY FEATURES
- Correct unfolding beyond other limited methods such as the DIN norm
- Extended automatic batch processing ability – Solution Finding Service

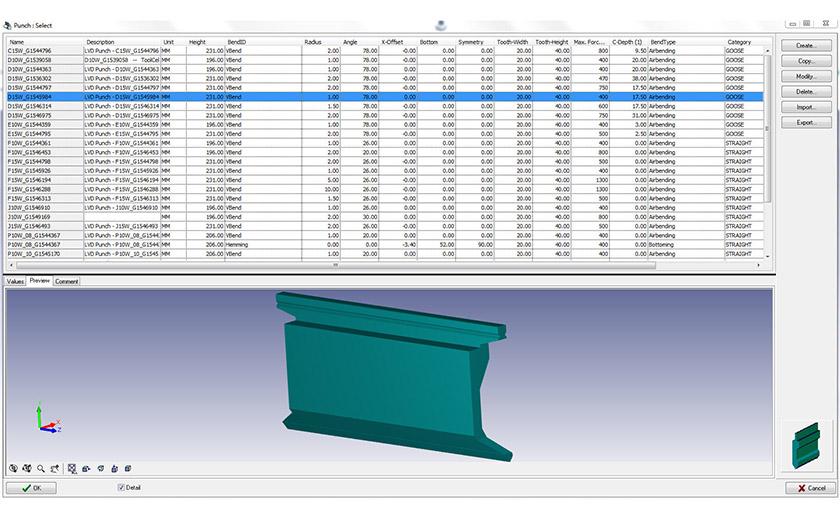

- Automatic calculation of optimal bend sequence, gauging positions, tool set-ups and preliminary programs
- Automatic calculation of inclined, parallel and multi-bends, as well as hemming and preliminary bends

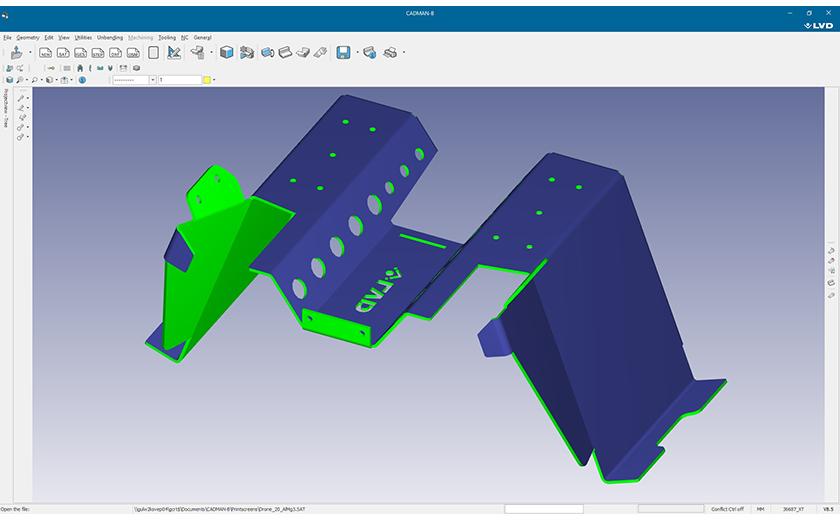

- Processes all standard 3D CAD models (SAT, STEP, IGES, and others)
- Seamlessly links to CADMAN-P or CADMAN-L for 2D part profiling
- Fully integrated with LVD’s Touch-B controller
- Part of the CADMAN Software Suite, communicates to the central CADMAN database
