HIGHLY FLEXIBLE AUTOMATION SYSTEM

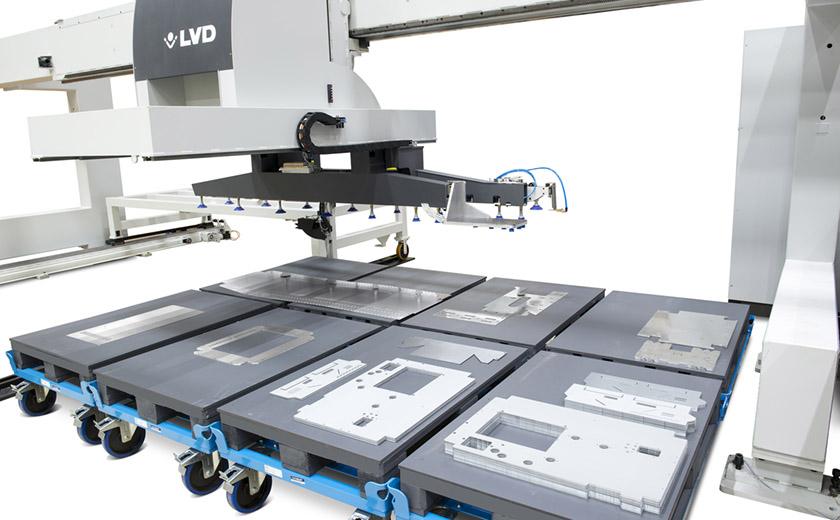

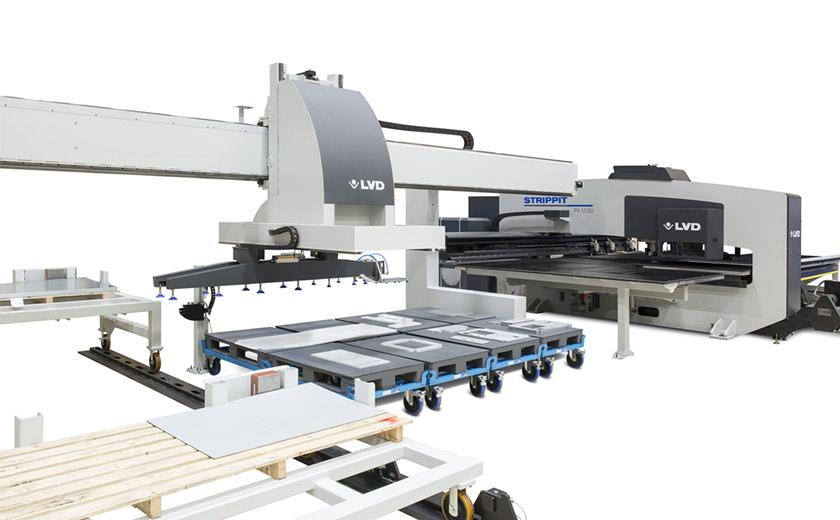

One of the most flexible automation systems available for punching. The FA-P system can handle small and large volume applications with common material type, thickness and size and small as well as large work pieces. FA-P offers advanced load/unload, part picking and a large area for stacking punched parts directly onto the allocated pallet – with no operator intervention of additional automation required.
KEY FEATURES
- Automated production from stored raw material to stacked finished part
- Fast loading system
- Automatic sheet thickness control and automatic sheet separator devices ensure efficient material loading
- Intuitive touch screen graphical user interface
PRODUCTIVITY-ENHANCING OPTIONS
- Second loading pallet
- Part picking and sorting for scratch-free unloading
- Full integration with an existing warehouse
MODELS
- Available for VX and PX-1530 Series punch presses
Specifications
- Maximum sheet size: up to 3050 x 1525 mm
- Part sizes from 200 x 100 mm
- Maximum load table capacity: 3000 kg
- Maximum material thickness: 4mm
