COST-EFFICIENT CNC PUNCHING MACHINE
For cost-efficient CNC punching in a reliable and user-friendly machine there’s the P-Series. The ram system, rugged frame and CNC control ensure tight tolerances and consistent punching accuracy. The control offers simplicity for operator input of critical dimensions. The P-Series is ideal for shorter production runs, prototype production, job shop environments and cellular manufacturing.
KEY FEATURES
- Flexible 33-station thick turret
- Quick-change die holders
- Wheel, tapping and full form tool capabilities
- Smart Clamp ensures the smallest possible no-punch zones
- 25 mm feed clearance for more forming capacity
- Easy-to-use Fanuc CNC control
PERFORMANCE-ENHANCING OPTIONS
- CADMAN-P programming software
- ABS automatic tool lubrication
MODELS

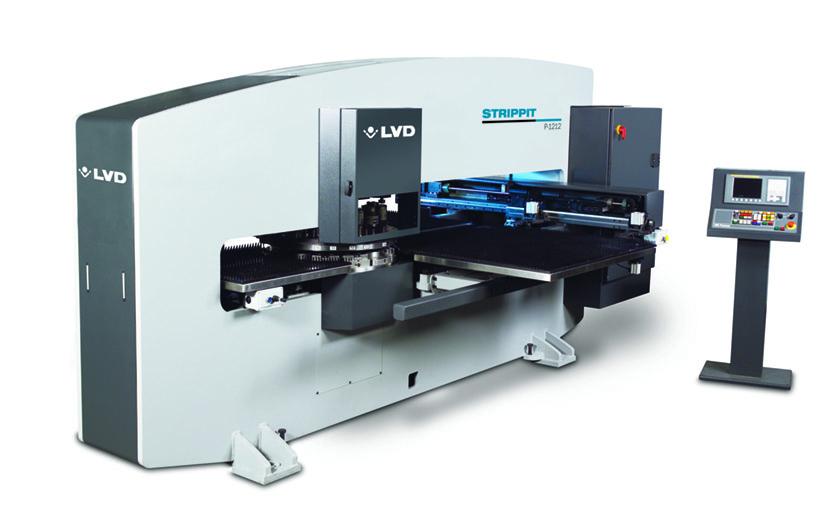

- P 1212 (20 ton – 1250 x 1250 mm)

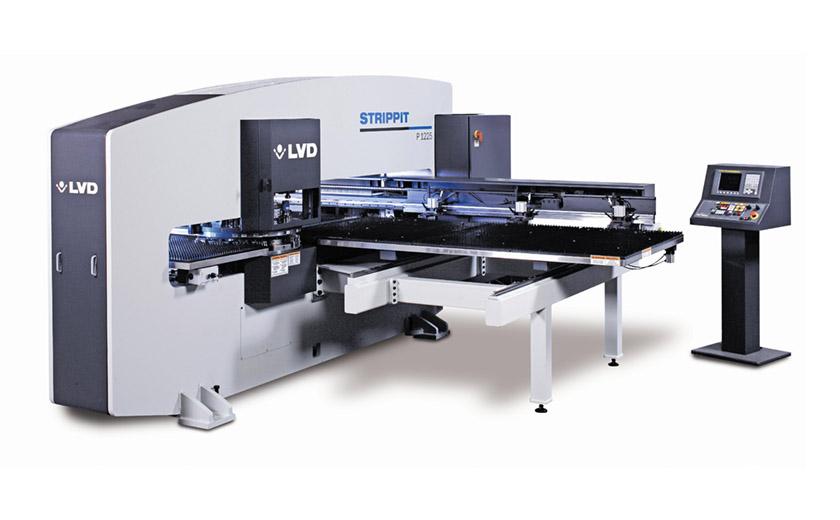

- P 1225 (20 ton – 1250 x 2500 mm)
- P 1525 (20 ton – 1524 x 2500 mm)
Specifications
- Maximum material thickness: 6,35 mm
- Maximum hit rate: up to 300 HPM on 25 mm centers
