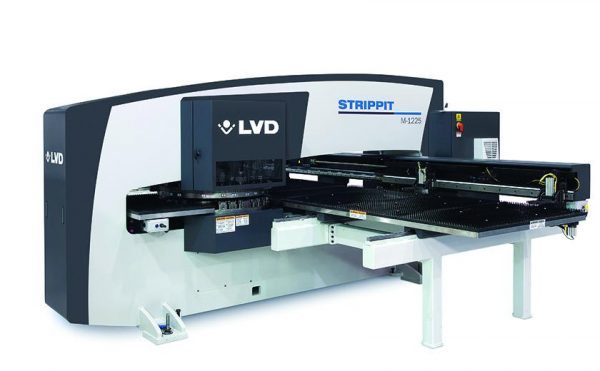

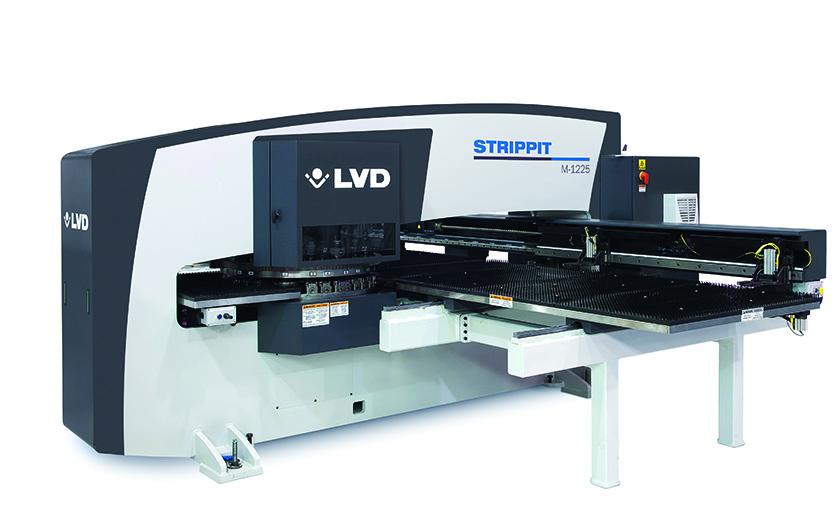

LARGE CAPACITY, HIGH-PERFORMANCE TURRET PUNCH PRESS
M-Series CNC punch presses are high capacity, highly flexible machines. A versatile 47-station turret – the largest turret capacity in its class – reduces set-up time to keep throughput high, no matter the application. The built-in Smart Stroke feature automatically optimizes the ram stroke and simplifies programming operations to further enhance productivity. LVD’s Energy Reduction System (ERS) makes the M-Series punch press more energy efficient than competitive offerings, less costly to operate and maintain.
KEY FEATURES
- Large capacity 47-station thick turret
- Three programmable 88,9 mm auto index stations
- Indexable multi-tool capability offers more capacity
- Quick-change die holders
- Smart Clamp ensures the smallest possible no-punch zones
- Smart Stroke automatically optimizes ram stroke
- Energy reduction system minimizes power consumption
- Fully programmable ram
- 25 mm feed clearance for more forming capacity
- Intuitive Touch-P touchscreen control
PERFORMANCE-ENHANCING OPTIONS
- CADMAN-P programming software
- ABS automatic tool lubrication
- Automatic load/unload system
- Compact Tower (CT-P)
- Pick-Sort robotic material handling system
MODELS
- M 1212 (20 ton – 1250 x 1250 mm)
- M 1225 (20 ton – 1250 x 2500 mm)
- M 1525 (20 ton – 1524 x 2500 mm)
Specifications
- Maximum material thickness: 6,35 mm
- Maximum hit rate: up to 400 HPM on 25 mm centers
- Marking stroke: up to 1700 SPM
