HIGH TONNAGE CNC PUNCHING
Effortlessly handle high tonnage, high production punching requirements with the V-Series. This full-featured 30-ton CNC punch press offers a flexible tool configuration, full sheet utilization and heavy-sheet carrying capacity. A large capacity turret provides the versatility of up to 120 fully indexable tools. The press drive system ensures the best power efficiency for higher tonnage applications. CNC programmable and relocatable work clamps allow full sheet utilization. Modular automation options add even more capacity and flexibility.
KEY FEATURES

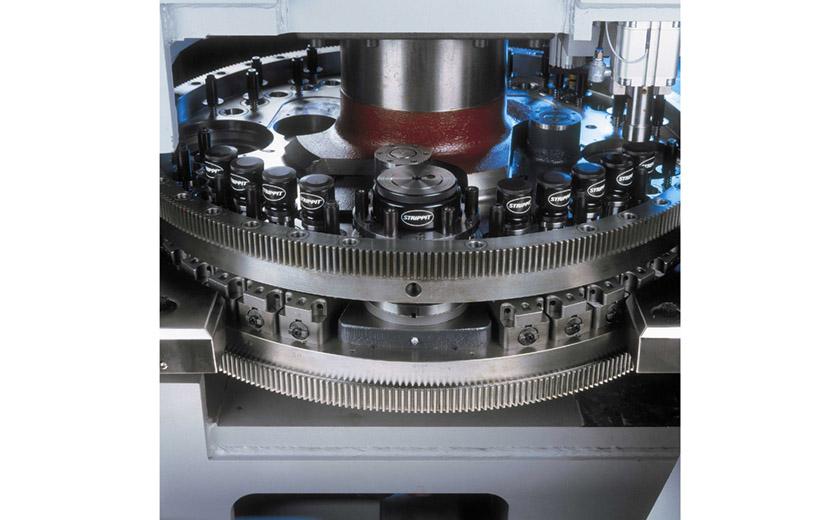

- Versatile 48-station thick turret
- Four programmable 88,9 mm auto index stations
- Indexable multi-tool capability offers more capacity

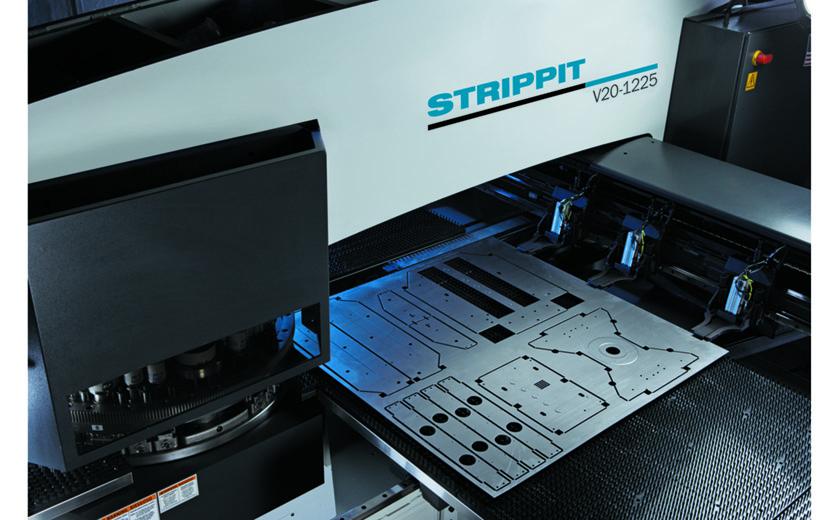

- Three programmable and relocatable work clamps maximize sheet utilization
- Energy reduction system minimizes power consumption
- Quick-change die holders
- Smart Clamp ensures the smallest possible no-punch zones
- Smart Stroke automatically optimizes ram stroke
- Programmable parts removal chute
PERFORMANCE-ENHANCING OPTIONS
- CADMAN-P programming software
- ABS automatic tool lubrication
- Automatic load/unload system
- Compact Tower (CT-P)
- Pick-sort robotic system
MODELS
- V30-1225 (30 ton – 1250 x 2500 mm)

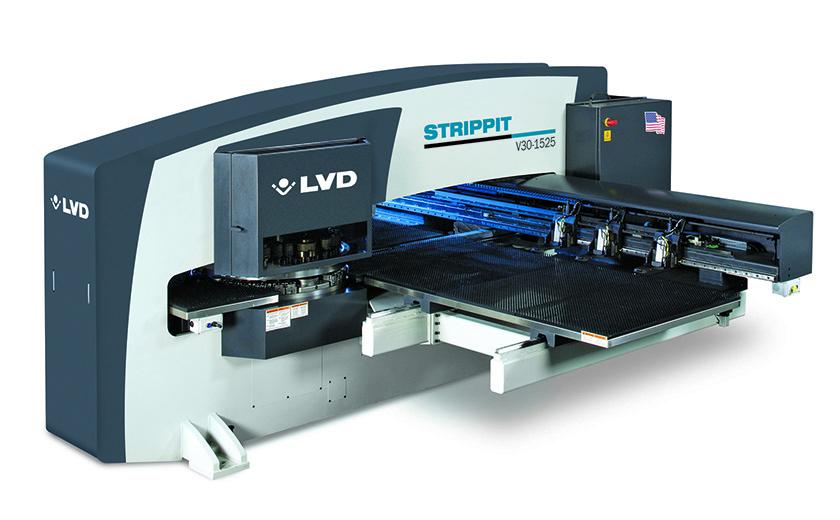

- V30-1525 (30 ton – 1524 x 2500 mm)
Specifications
- Maximum material thickness: 6,35 mm
- Maximum hit rate: up to 440 HPM on 25 mm
