UNSURPASSED CNC PUNCH PRESS
The VX-Series is the choice for production applications demanding high productivity. These full-featured sheet metal punching machines are exceptionally versatile – high hit rates, large feed clearance and powerful control capabilities combine to enable optimal throughput. Full sheet utilization and heavy sheet carrying capacity also add capacity – as do smart features and automation options. It all adds up to punching productivity that is unsurpassed.
KEY FEATURES

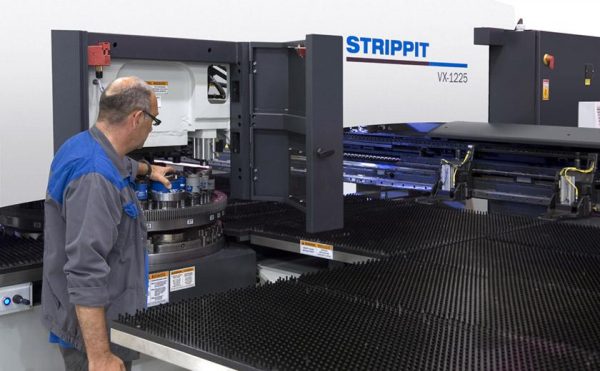

- Versatile 48-station thick turret
- Four programmable 88,9 mm auto index stations
- Indexable multi-tool capability offers more capacity

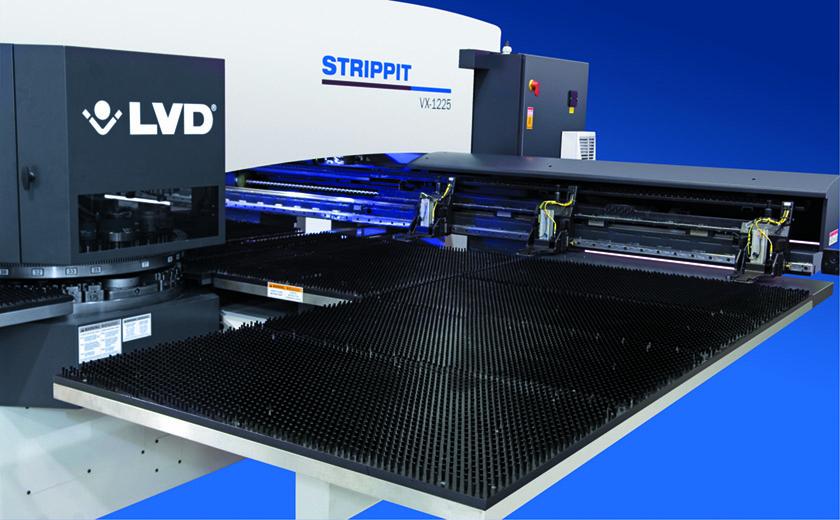

- Three programmable and relocatable work clamps maximize sheet utilization
- Energy Reduction System minimizes power consumption
- Quick-change die holders
- Smart Clamp ensures the smallest possible no-punch zones
- Smart Stroke automatically optimizes ram stroke
- Programmable parts removal chute
PERFORMANCE-ENHANCING OPTIONS
- CADMAN-P programming software
- ABS automatic tool lubrication
- Automatic load/unload system

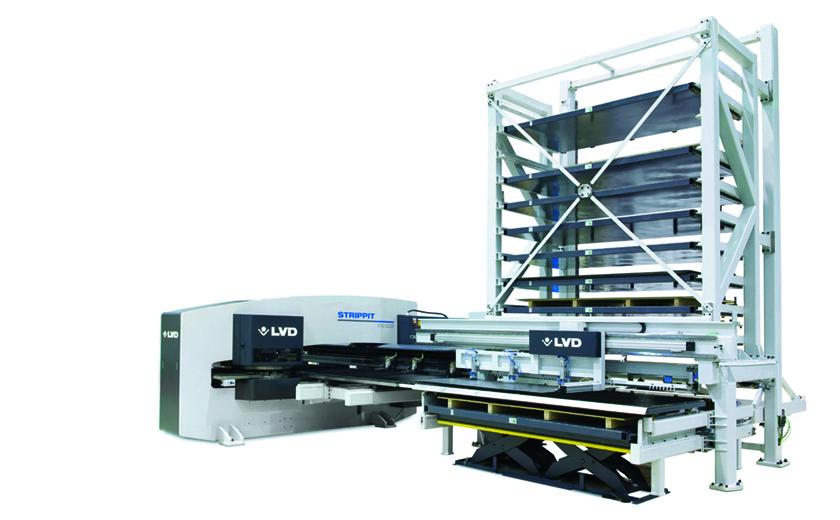

- Compact Tower (CT-P)
- Pick-sort robotic system
MODELS

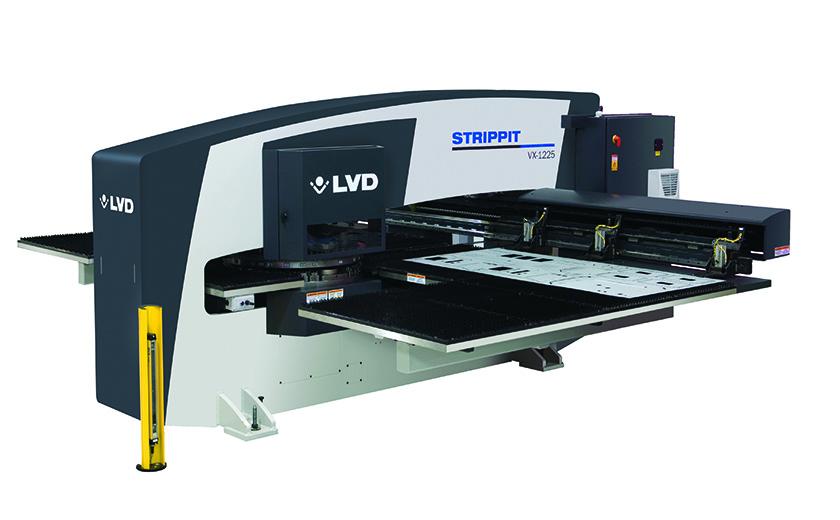

- VX-1225 (20 ton – 1250 x 2500 mm)
- VX-1530 (20 ton – 1524 x 3050 mm)
Specifications
- Maximum material thickness: 6,35 mm
- Maximum hit rate: up to 530 HPM on 25 mm centers
- Maximum hit rate: 920 HPM on 1 mm centers
