TWO TECHNOLOGIES IN ONE MACHINE

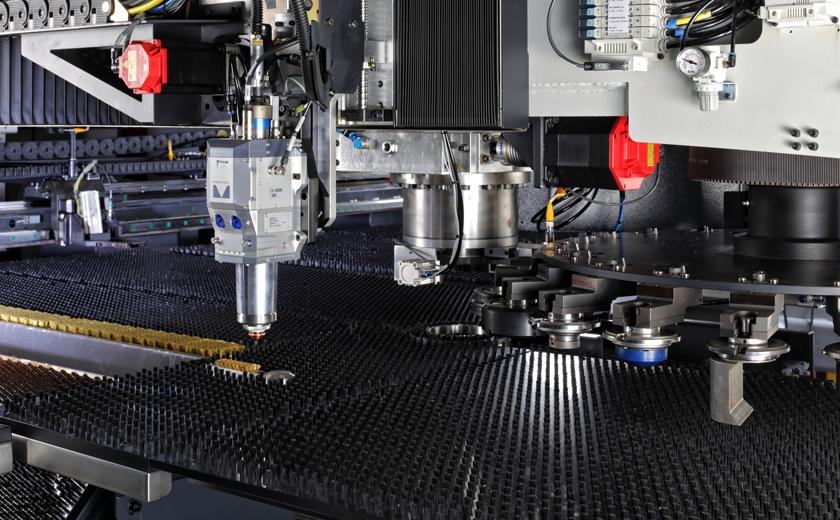

Combination technology offers complete part processing for flexible manufacturing. The punch press handles high-speed punching and forming operations. The fiber laser delivers high-quality cutting of outer contours, intricate inner contours and can be used for material etching. Choose from single-head (Strippit PX-L) or turret style (Strippit V/VT-L), 200 or 300 kN configurations, 3- or 4-kW fiber laser in a modern, energy-efficient machine design from the industry’s punch-laser technology pioneer.
KEY FEATURES
- 20 direct-drive indexable tool stations (Strippit PX-L)
- 40/48 turret stations (Strippit V/VT-L)
- Fully programmable punching cycles (Strippit PX-L)
- High-speed punching, forming, bending and tapping
- Laser cutting of unique shaped holes or contours, material etching
- Fanuc 3- or 4-kW fiber laser

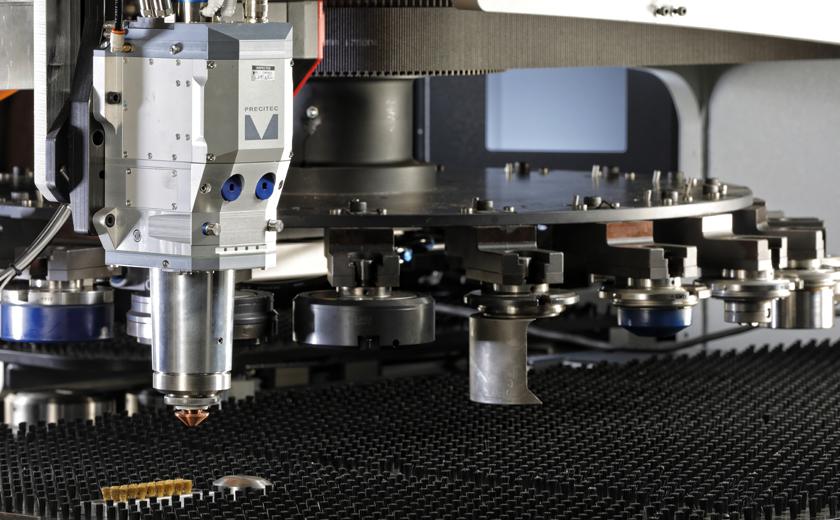

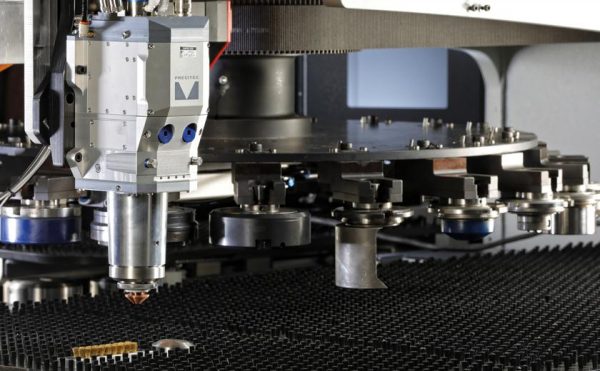

- Precitec ProCutter auto-focus cutting head

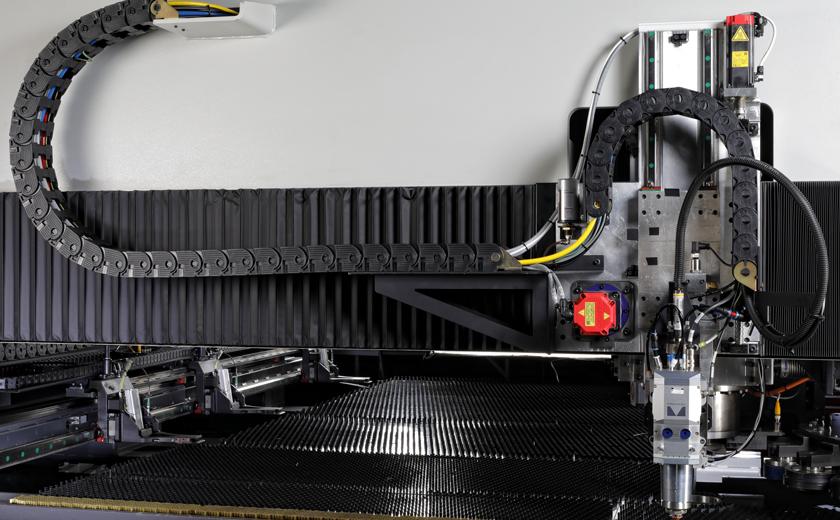

- Next-generation rack and pinion drive system eliminates backlash, provides accurate positioning
- Process a 3048 mm x 1524 mm workpiece without repositioning

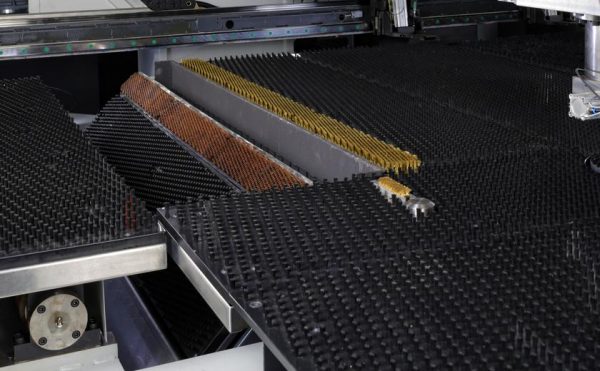

- Large 406 mm x 1524 mm work chute for laser cut parts
- Intuitive Touch-PL touch screen control
PERFORMANCE-ENHANCING OPTIONS
- CADMAN-PL programming software
- MOVit load/unload, tower and warehouse automation systems
MODELS

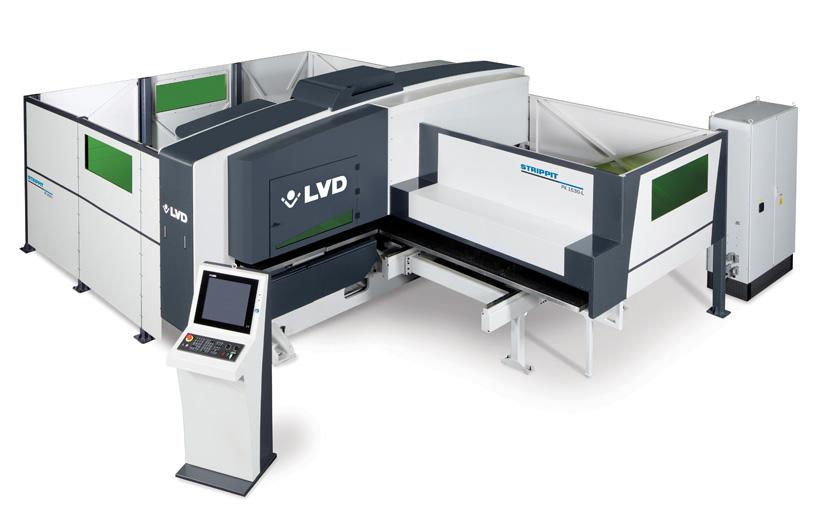

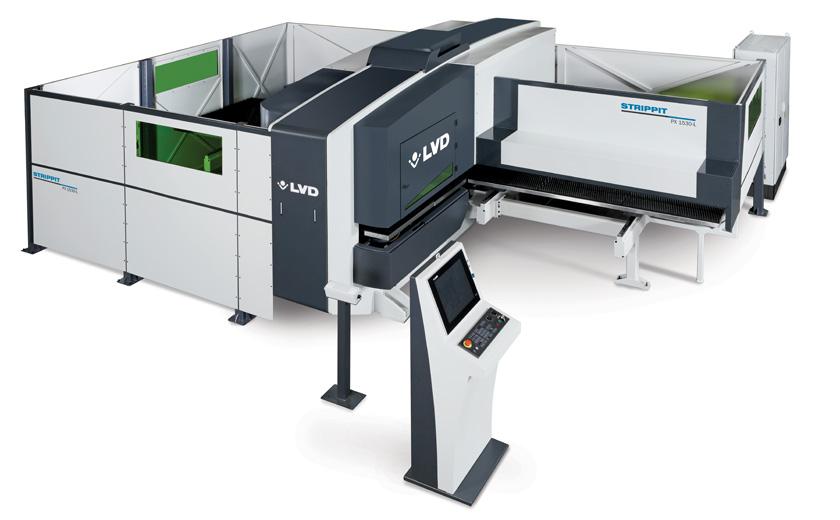

- PX 1530-L (20 ton – 3050 x 1550 mm)
- V 1530-L (30 ton – 3050 x 1550 mm)
- VT 1530-L (30 ton – 3050 x 1550 mm)
Specifications
- Maximum material thickness (punching): 6,35 mm
- Maximum material thickness (laser cutting): 10,0 mm
- Maximum hit rate: up to 440 HPM on 25 mm centers
